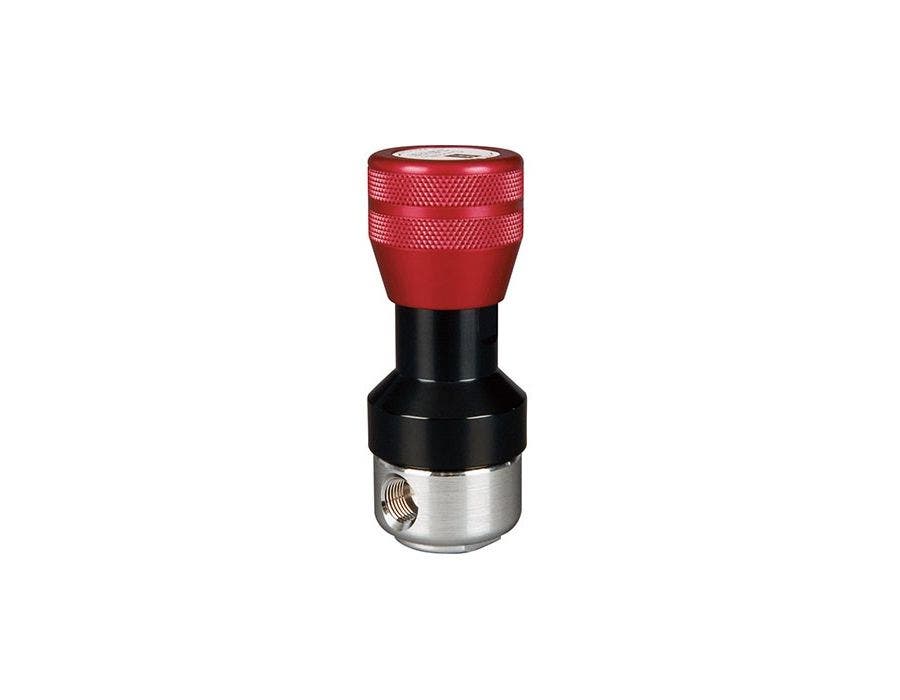

Cashco Tryckreducerande regulator P1
Ert pris:
14 400 kr
I lager
%1 st i lager
Artikelnummer
P1
The Model P1 is designed for gases and liquids with inlet pressures up to 3600 psig (248 Barg). Standard adjustable outlet ranges from 1-10 psig (.07-.69 Barg) thru 10-750 psig (.69-51.7 Barg). Flow coefficient of 0.02, 0.06, and 0.20 available. This versatile point of use regulator can be ordered with a variety of options to meet your system demands. Standard construction includes 40 micron integral filter and diffusion resistant stainless steel diaphragm.
| Benämning | Cashco Tryckreducerande regulator P1 |
|---|---|
| Design | Tryckreducerande regulatorer |
| Storlek | 1/4"-1/2" (DN8-DN15) |
| Material | Cast stainless steel, BRASS |
| Maxtryck | 250 Bar |
| Temperaturområde | -198 till +260 |
| Sätesmaterial | PCTFE, Polyimide av PTFE |
| Tryckområde (Bar) | 0.5 - 550.0 |
| Anslutning | Female NPT, TRI-CLAMP, TUBE ENDS |
| Certifikat | Ex h IIB T6... T1 Gb 1000ATEXR1 X |
| Applikationer | Olja, Korrosiva Gaser, Energi gaser, Inerta gaser, Kemikalier |
