SLR2-2"FL-55-BRZ/BRZ/M7, 3-250psi, PN40 FF, O2-clean

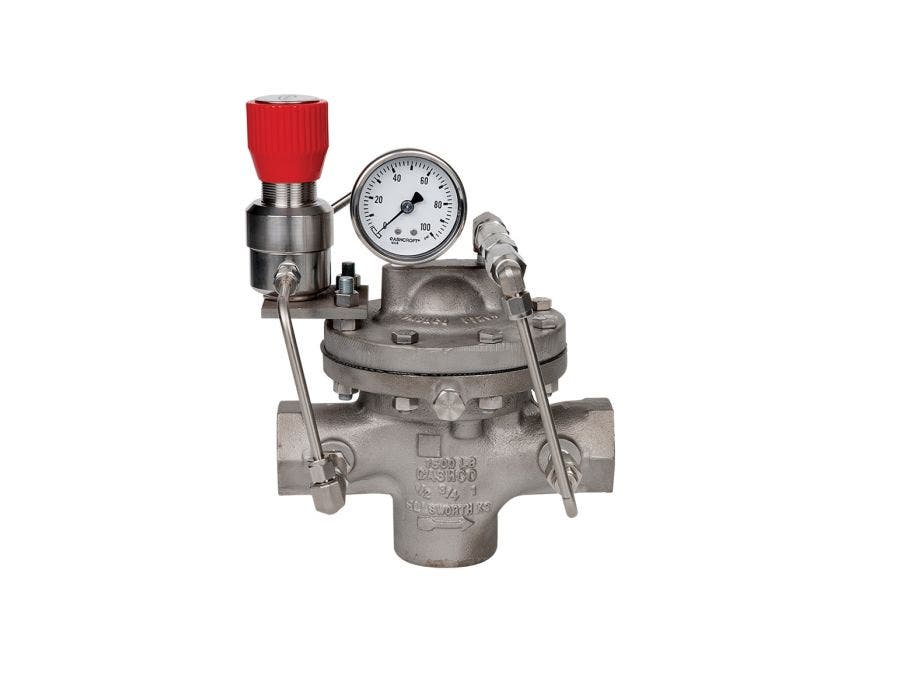

Model SLR-2 is high performance, pressure loaded diaphragm-type, flow-to-open pressure reducing regulator. Design includes an internal pressure balancing piston cylinder that provides high flow capacity and high pressure drop capability. Performance meets or exceeds that of competitive pressure loaded or pilot-operated designs. A non-relieving pressure regulator "loader" is bracket mounted to the top of the dome.
The set point of the loader controls the upstream supply pressure into the dome to maintain the desired downstream pressure adjustable between 0.21 to 17.2 Barg of the SLR-2. Pressure in the dome will constantly bleed out through a filter and check valve which is piped back into the outlet of the body of the pressure reducing regulator.
| Benämning | SLR2-2"FL-55-BRZ/BRZ/M7, 3-250psi, PN40 FF, O2-clean |
|---|---|
| Ursprungsland | USA |
| Storlek [DN] | DN50 |
| Tryckområde [Bar] | 0,21-17,2 bar |
| Material hus | Gjutning av Brons ASTM B62 C83600 |
| Anslutning | PN40 RF |
| Temperaturområde | -51 till +107 |
| Modell | SLR-2 |
| Typ | Pilot Operated Pressure Reducing Regulator |
| Service | Syrgas |
| Storlek (") | 2" |
| Säte | Mjukt Säte |
| Säte material | Polyuretan (PA) |
| Tätning | Fluorokisel (FK) |
| Fjäderhusmaterial | Gjutning av Brons ASTM B62 C83600 |
| Membrantyp | Sammansättning |
| Membranmaterial | Fluorokisel (FK) |
| Trim no. | M7 |
| Trim Material | Monel™ |
| Maxtryck | 48,3 Bar |
| Max differenstryck | 41.3 |
| Max temperatur [°C] | +107 |
| Min Temperatur [°C] | -51 |
| Läckage klass | ANSI /FCI 70-2 Class IV |
| Kvs [m3/h] | 51.7 |
| Cv [gpm] | 60.0 |
| Bygglängd [mm] | 292 |
| Driftsmetod | Tryckstyrande pilotventil |
| Syrgasavfettad | Ja |
| Applikation | För luft och liknande gaser |
| Certifikat | On Request - ATEX II 2 G Ex h IIB T6...T1 Gb 1000ATEXR1 X |
| Längd [mm] | 292 |
| Höjd [mm] | 362 |
| Bredd [mm] | 282 |
| Nettovikt [kg] | 29.0 |
| Statistikkod | 84811019 |
| Applikationer | Korrosiva Gaser, Energi gaser, Inerta gaser |
Designed as a gaseous oxygen (GOX) service regulator. Complete with Bronze Body and Monel Internal.
Alla dessa applikationer passar inte för alla produktmodeller och utföranden. Rådgör med en av våra tekniska specialister för att säkerställa att vald modell passar till din applikation.
