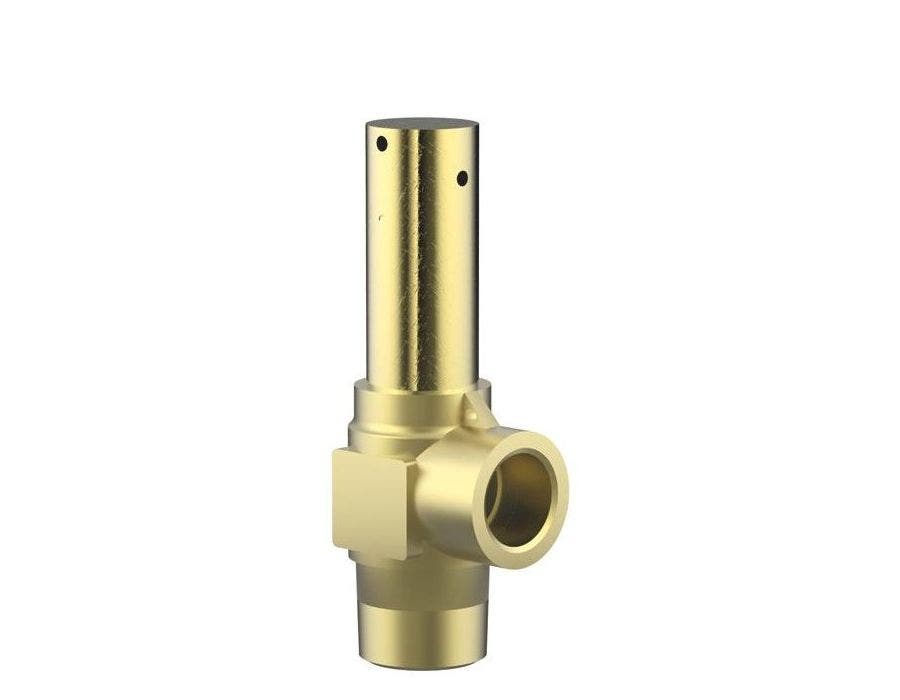

Säk.ventil Herose 06002, 1/4" NPT, RG/1.4571/PTFE+C
910 kr
I lager
Artikelnummer
06002.0200.5000/4.0-5.99
| Benämning | Säk.ventil Herose 06002, 1/4" NPT, RG/1.4571/PTFE+C |
|---|---|
| Ursprungsland | Tyskland |
| Design | Angle Type Safety Relief Valve |
| Storlek | 1/4"-1/2" (DN8-DN15) |
| Material | CW617N Mässing |
| Maxtryck | 63 Bar |
| Temperaturområde | -196 till +150 |
| Sätesmaterial | Mjukt säte/kolfylld PTFE |
| Tryckområde (Bar) | 1.0 - 55.0 |
| Anslutning | 1/4 NPT , BSPP (G) 1/4" |
| Certifikat | TÜV-SV.1048. S/G |
| Typ | Angle Type Safety Relief Valve |
| Storlek [DN] | DN8 |
| Storlek (") | 1/4" |
| Säte | Mjukt Säte |
| Säte material | PTFE / Carbon filled (25%) |
| Material hus | CW617N |
| Fjäderhusmaterial | CW614N |
| Trim Material | CW614N |
| Anslutning Inlopp | Male NPT acc. to ANSI B 1.20.1 |
| Anslutning Utlopp | Invändig gänga |
| Maxtryck | 63 Bar |
| Tryckklass [Bar] | PN63 |
| Max temperatur [°C] | +150 |
| Min Temperatur [°C] | -196 |
| Inloppsdiameter (do) [mm] | 6,0 mm |
| Syrgasavfettad | Ja |
| Längd [mm] | 70 |
| Lättverk (hävarm) | Nej |
| Nettovikt [kg] | 0.2 |
| Statistikkod | 84814090 |
| Applikationer | Energi gaser, Inerta gaser |
***
Cryogenic Safety Valve, angle type, brass, PN63,
type tested TÜV-SV.1048. S/G, standard safety valve,
with carbon filled PTFE valve seal, spring in 1.4571
Inlet: male thread NPT according to ANSI B 1.20.1
Outlet: female thread Rc 3/8 according to ISO 7/1
Cleaned and degreased for oxygen service
Closed bonnet drainage hole in the locking screw
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG
Working temperature: -196°C up to +150°C, suitable for horizontal installation
Spring range 4,0-5,99 bar
