P7-1/2"NPT-316L/316L/Cv=2/10-300psi-H2 cleaned-Non Relieving

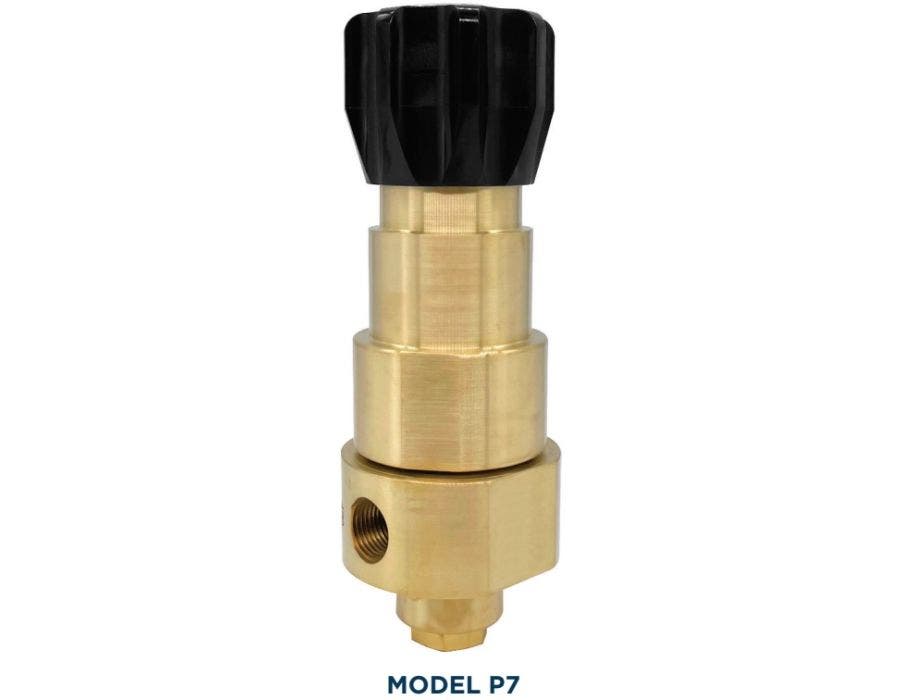

The Model P7 is designed to safely reduce inlet pressures of up to 4500 psig (310.0 Barg)* and accurately deliver high gas flows throughout the 10-1500 psig (.69-103.4 Barg) outlet pressure
range. It can operate between -17 to 204 Deg C, and have threaded and flanged end connection.
The P7 is designed for control of high and low pressure gases, this self-venting unit can also be furnished as a non-venting regulator for hydraulic applications.
The P7 can be applied for hyperbaric chambers, air compressors, pressurized ballast tanks, high pressure testing, life support applications, manifold systems, tube trailers, and gas transfer
stations
Cleaned for Hydrogen Service is compliant with CGA G-5.4 and includes sealed enclosure bag and notification tag stating suitability for gaseous hydrogen service
| Benämning | P7-1/2"NPT-316L/316L/Cv=2/10-300psi-H2 cleaned-Non Relieving |
|---|---|
| Ursprungsland | USA |
| Storlek [DN] | DN15 |
| Material hus | 316L Rostfritt Stål , ASTM A479 |
| Tryckområde [Bar] | 0.69 - 20.7 bar |
| Modell | P7 |
| Typ | Tryckreducerande regulatorer |
| Service | Syrgas av Flytande |
| Storlek (") | 1/2" |
| Säte | Mjukt Säte |
| Säte material | TFE |
| Tätning | TFE |
| Fjäderhusmaterial | Rostfritt Stål ASTM A479 S31600/S31603 |
| Membrantyp | Metall |
| Membranmaterial | Kolv typ av 316 rostfritt stål |
| Trim Material | 316 Rostfritt stål |
| Trim no. | 1 |
| Maxtryck | 310.3 Bar |
| Min Temperatur [°C] | -17 |
| Max temperatur [°C] | +204 |
| Läckage klass | ANSI /FCI 70-2 Class VI |
| Kvs [m3/h] | 1.72 |
| Cv [gpm] | 2.0 |
| Anslutning | NPT |
| Bygglängd [mm] | 76 |
| Driftsmetod | Egenmediastyrd med fjäder |
| Syrgasavfettad | Nej |
| Applikation | Gaser, ångor och vätskor |
| Certifikat | On Request - ATEX II 2 G Ex h IIB T6...T1 Gb 1000ATEXR1 X |
| Längd [mm] | 76 |
| Höjd [mm] | 214 |
| Bredd [mm] | 76 |
| Nettovikt [kg] | 3.4 |
| Statistikkod | 84811019 |
| Applikationer | Olja, Korrosiva Gaser, Energi gaser, Inerta gaser, Kemikalier |
MODELL P7, REV A, HÖGT FLÖDE/KÄNSLIGHET TRYCKREDUCERINGSVENTIL;
DN15 (1/2") INLOPP,
CV=2.0;
HUS,TRIM OCH FJÄDERKAMMARE AV 316L ROSTFRITT ;
HUVUDVENTILSÄTE AV TFE,
VENT VENTILSÄTE AV CTFE,
PORTNINGSKONFIGURATION A;
NPT-ÄNDANSLUTNINGAR;
0.69-20.7 BARG (10-300 Psig) FJÄDEROMRÅDE;
INGEN UTGÅNGSMANOMETERTRYCK
OPT-6: EJ AVLUFTANDE
AVFETTAD FÖR ICKE-VÄTGASAPPLIKATIONER ENLIGT CASHCO SPECIFIKATION S-1821
