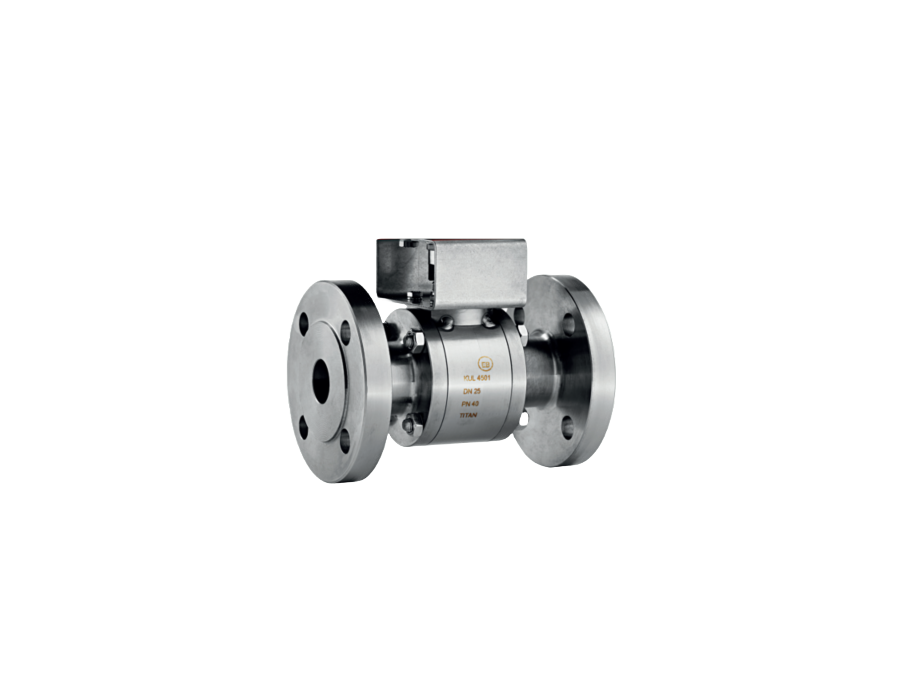

EB kulventil KUL4501A, DN80-FB-PN16, ANSI 150, TITAN
123 520 kr
I lager
Artikelnummer
EB4501A-1363-080FB
Reliable and durable three-piece ball valves (2-way) in high alloy materials for tight shut-off in liquid and gas applications. The
floating ball is soft seated with special design avoiding hidden cavities between ball and body for a long-life cycle, even in
applications containing particles and fibers. The valve can be manually operated with hand lever and has mounting flange
according to ISO-5211 for actuator.
| Benämning | EB kulventil KUL4501A, DN80-FB-PN16, ANSI 150, TITAN |
|---|---|
| Ursprungsland | Sverige |
| Storlek [DN] | DN80 |
| Anslutning | ANSI 150lb RF |
| Modell | 4501 |
| Typ | 3-Delad kulventil |
| Storlek (") | 3" |
| Säte | Mjukt Säte |
| Säte material | PTFE+C |
| Tätning | Viton |
| Material hus | Titan Gr. 2 |
| Trim Material | Titan |
| Bygglängd [mm] | 241 |
| Maxtryck | 16 Bar |
| Max differenstryck | 16 |
| Tryckklass [Bar] | ASME 150 |
| Max temperatur [°C] | +170 |
| Min Temperatur [°C] | -40 |
| Läckage klass | Rate A acc. to EN12266-1 |
| Genomlopp | Fullt |
| Driftsmetod | Manuellt styrd |
| Lättverk (hävarm) | Ja |
| Syrgasavfettad | Nej |
| Certifikat | CE-marked acc. to PED 2014/68/EU CAT I |
| Applikation | Korrosiva/frätande vätskor, ånga, kolväten, heta vätskor |
| Nettovikt [kg] | 1.0 |
| Statistikkod | 84818081 |
| Applikationer | Olja, Industriellt avlopp, Korrosiva Gaser, Kemikalier |
Engelsberg kulventil KUL 4501A, DN80,
Full Bore, mtrl Titan,Fläns ANSI #150,
säte av PTFE, tätningar av Viton.
Spakmanövrerad.
Inga typiska applikationer tillgängliga för denna produkt.
