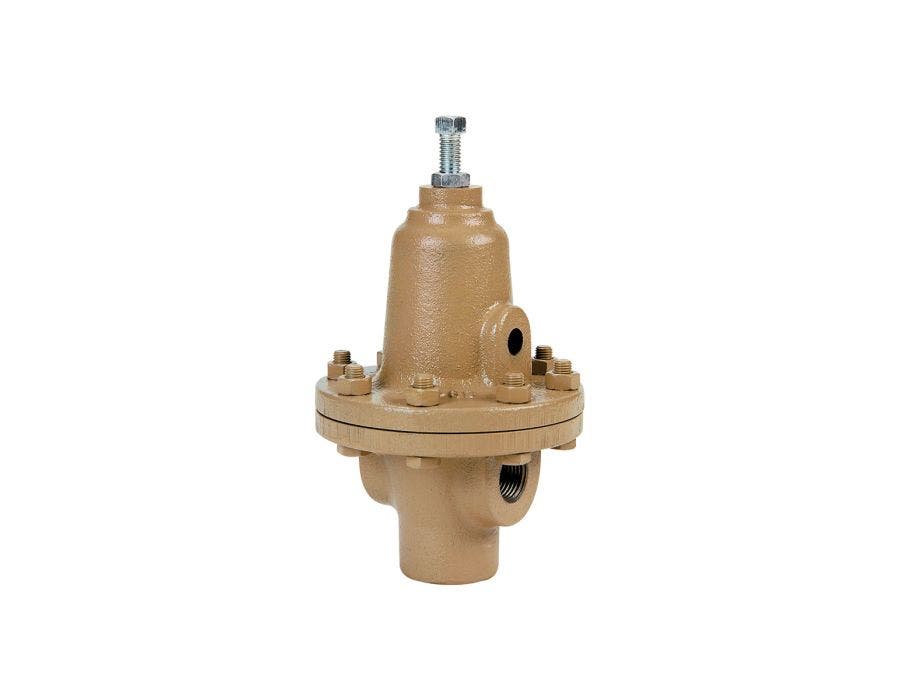

BQ-1/4"NPT-BRZ/BRZ/B2/5-15psi

22 060 kr
I lager
Artikelnummer
530-114-1051

Comes with various options to choose from, Closing cap, Special cleaning for Non-oxygen Service and Oxygen Service, Cryogenic Construction, Atex and PED Certificates”.

The Model BQ is is primary a general service, self-contained pressure relief / pressure sustaining regulator suitable as a back pressure regulator or bypass valve for controlling inlet pressures between 5-15 Psig (0,34 - 1,03 Barg). 10-25 Psig (0,69 - 1,72 Barg). 20-75 Psig (1,38 - 5,17 Barg).  65-150 Psig (4,48 - 10,3 Barg). 140-300 Psig (9,65 - 20,68 Barg).  For 1/4", 3/8" or 1/2" (DN8, 10, and 15) process piping.  With a large orifice and diaphragm provide sensitivity with high capacity.  The composition seat allow for tight shut-off.

This Model BQ is excellent for atmospheric industrial gases – GN2, Ar, He, H2, CO2 – as well as natural gas.  Also pressure sustaining applications where the temperature is greater -29 Deg C.  Can be used as a utilities air regulator. Also for use in corrosive and non-corrosive chemical gas services are possible depending on material compatibility

Other options available upon request include Cleaning for Oxygen service, cryogenic construction and differential/pressure loaded construction.  Four body materials and twenty-one trim material combinations allow compatibility with many liquids and gasses.

Atex and PED Certificates upon request.

Har du frågor? Kontakta oss >>
Lägg till i jämförelselista >>
Mer information
Modell BQ
Benämning BQ-1/4"NPT-BRZ/BRZ/B2/5-15psi
Ursprungsland USA
Benämning 1/4"NPT-BRZ/BRZ/B2
Service Gas
Storlek [DN] 1/4" (DN8)
Tryckområde 1,38-5.17 Bar
Temperaturområde -29 till +83
Material hus Gjutning av Brons ASTM B62 C83600
Fjäderhusmaterial Gjutning av Brons ASTM B62 C83600
Säte Mjukt Säte
Anslutning NPTF
Driftsmetod Egenmediastyrd med fjäder
Trim no. B2
Membrantyp Sammansättning
Membranmaterial Neopren (BC)
Säte material Nitril (NBR)
Maxtryck 27.6 Bar
Cv [gpm] 1.81
Kvs [m3/h] 1.56
Bruttovikt [kg] 0
Nettovikt [kg] 4.0
Volym förpackning [mm] 0
Statistikkod 84811019
Längd [mm] 0
Höjd [mm] 0
Bredd [mm] 0
Syrgasavfettad Nej
MODELL BQ REV A MOTTRYCKSREGULATOR, GRAPHITE/NBR PACKNINGAR; DN8 (1/4") INLOPP, DN15 (1/2") UTLOPP; BRONS HUS MED BRONS FJÄDERKAMMARE; B2 TRIM: MÄSSING MED SÄTE AV BUNA-N (NBR), MEMBRAN AV NEOPRENE (BC); NPT RÖRANSLUTNINGAR; 0.34-1.03 BARG (5-15 PSIG) FJÄDEROMRÅDE

The Model BQ Back Pressure Regulator  Designed for controlling a wide range of industrial gases.

  • Excellent for atmospheric industrial gases:
  • Nitrogen (GN2), oxygen (GOX), Argon (Ar), helium (He), Hydrogen (H2), Carbon Dioxide (CO2), also for use with Natural gas, Biogas, Propane and LPG systems.
  • Corrosive and non-corrosive chemical gas services are possible with broad materials range.
  • Economizer Regulator
  • Pump Recirculation pressure Relief Valve
  • Irrigation mains pressure control
  • Compressor Seal Oil

Alla dessa applikationer passar inte för alla produktmodeller och utföranden. Rådgör med en av våra tekniska specialister för att säkerställa att vald modell passar till din applikation.
