BQ-1/2"NPT-BRZ/BRZ/B5/140-300psi

23 393 kr
I lager
Artikelnummer
530-124-1050

Comes with various options to choose from, Closing cap, Special cleaning for Non-oxygen Service and Oxygen Service, Cryogenic Construction, Atex and PED Certificates”.

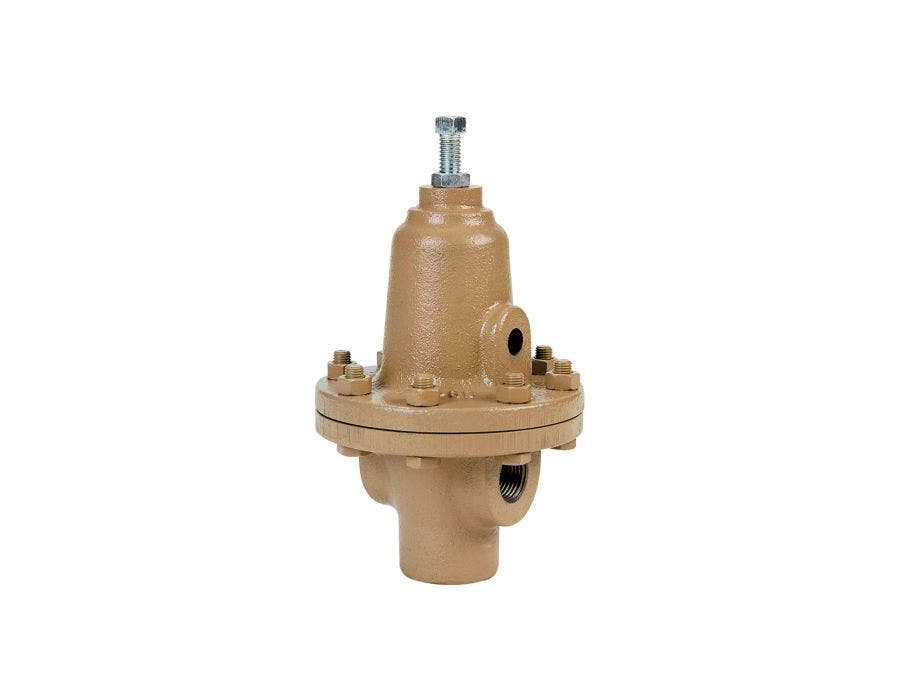

The Model BQ is is primary a general service, self-contained pressure relief / pressure sustaining regulator suitable as a back pressure regulator or bypass valve for controlling inlet pressures between 140-300 Psig (9,65 - 20,68 Barg).  For  1/2" (DN15) process piping and 1/2” (DN15) outlet connection.

With a large orifice and diaphragm provide sensitivity with high capacity.  The composition seat allow for tight shut-off.

This Model BQ is excellent for both liquids and industrial gases – GOX, GN2, Ar, He, H2, CO2, CNG – as well as natural gas.  Also, pressure sustaining applications where the temperature is greater -29 Deg C.  Can be used as a utilities air regulator. Also, for use in corrosive and non-corrosive chemical gas and Liquid services are possible depending on material compatibility.

Other options available upon request include Cleaning for Oxygen service, cryogenic construction for LOX, LIN, LH2, LNG ect. and differential/pressure loaded construction.

Four body materials and twenty-one trim material combinations allow compatibility with many liquids and gasses.  Atex and PED Certificates upon request.


Har du frågor? Kontakta oss >>
Lägg till i jämförelselista >>
Mer information
Modell BQ
Benämning BQ-1/2"NPT-BRZ/BRZ/B5/140-300psi
Ursprungsland USA
Benämning 1/2"NPT-BRZ/BRZ/B5
Service Syrgas, Flytande av Kryogen
Storlek [DN] 1/2" (DN15)
Tryckområde 9.65-20.68 Bar
Temperaturområde -29 till 93
Material hus Gjutning av Brons ASTM B62 C83600
Fjäderhusmaterial Gjutning av Brons ASTM B62 C83600
Säte Mjukt Säte
Anslutning NPTF
Storlek 1/2"-2.0" (DN15-DN50)
Anslutning Female NPT, Tapered thread female, Flanged, Extended-nipples
Driftsmetod Egenmediastyrd med fjäder
Trim no. B5
Membrantyp Metall
Membranmaterial Fosforbrons
Hus/säte PTFE
Maxtryck 27.6 Bar
Cv [gpm] 1.8
Kvs [m3/h] 1.56
Läckage klass ANSI /FCI 70-2 Class VI
Bruttovikt [kg] 0
Nettovikt [kg] 4.0
Volym förpackning [mm] 0
Statistikkod 84811019
Längd [mm] 114
Höjd [mm] 200
Bredd [mm] 114
Syrgasavfettad Nej
MODELL BQ REV A MOTTRYCKSREGULATOR, GRAPHITE/NBR PACKNINGAR; DN15 (1/2") INLOPP, DN15 (1/2") UTLOPP; BRONS HUS MED BRONS FJÄDERKAMMARE; B5 TRIM: MÄSSING MED PTFE-SÄTE, MEMBRAN AV FOSFORBRONS; NPT RÖRANSLUTNINGAR; 9,66-20,69 BARG (140-300 PSIG) FJÄDEROMRÅDE
  • Excellent for Liquids, atmospheric and cryogenic industrial gases:
  • Nitrogen (GN2), Oxygen (GOX), Argon (Ar), helium (He), Hydrogen (H2), Carbon Dioxide (CO2), also for use with LNG and CNG, Biogas, Propane and LPG systems.
  • Corrosive and non-corrosive chemical gas services are possible with broad materials range.
  • Economizer Regulator
  • Pump Recirculation pressure Relief Valve
  • Irrigation mains pressure control
  • Compressor Seal Oil

Alla dessa applikationer passar inte för alla produktmodeller och utföranden. Rådgör med en av våra tekniska specialister för att säkerställa att vald modell passar till din applikation.
