SLR2-11/2"FL-55-BRZ/BRZ/M7, 3-250psi, 300#FF, O2-clean

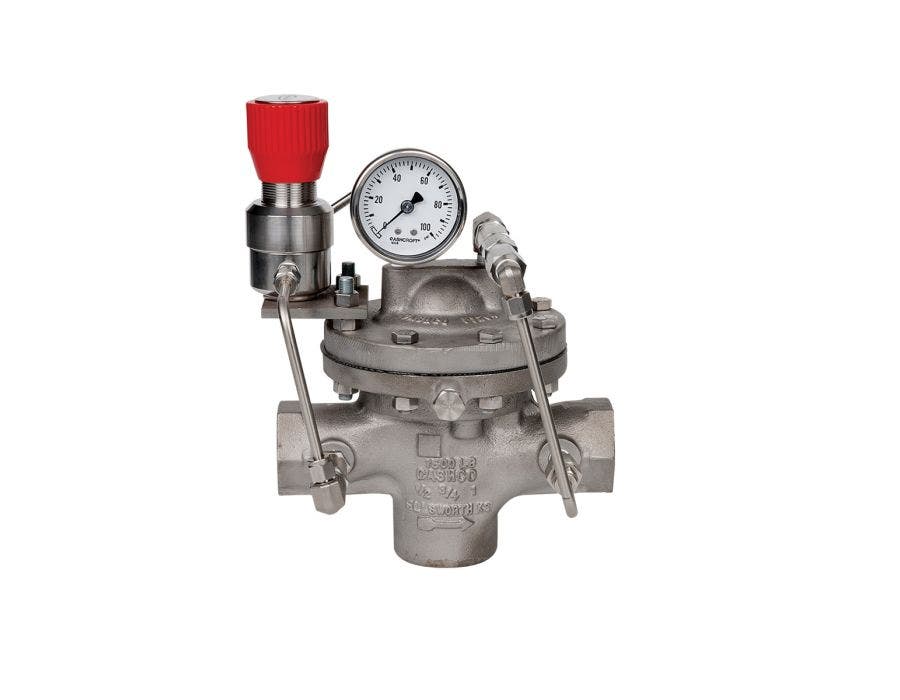

Model SLR-2 is high performance, pressure loaded diaphragm-type, flow-to-open pressure reducing regulator. Design includes an internal pressure balancing pistoncylinder that provides high flow capacity and high pressure drop capability. Performance meets or exceeds that of competitive pressure loaded or pilot-operated designs. A non-relieving pressure regulator "loader" is bracket mounted to the top of the dome. The set point of the loader controls the upstream supply pressure into the dome to maintain the desired downstream pressure adjustable between 0.21 to 17.2 Barg (3-250 Psig) of the SLR-2. Pressure in the dome will constantly bleed out through a filter and check valve which is piped back into the outlet of the body of the pressure reducing regulator.
| Product Name | SLR2-11/2"FL-55-BRZ/BRZ/M7, 3-250psi, 300#FF, O2-clean |
|---|---|
| Country of Manufacture | United States |
| Size [DN] | DN40 |
| Set pressure range [Bar] | 0,21-17,2 bar |
| Material body | Cast Bronze ASTM B62 C83600 |
| Connection | ANSI 300lb FF |
| Temperature range [°C] | -51 to +107 |
| Model | SLR-2 |
| Valve Type | Pilot Operated Pressure Reducing Regulator |
| Service | Oxygen |
| Size [Inch] | 1 1/2" |
| Seat | Soft Seat |
| Seat material | Polyurethane (PA) |
| Sealing | Fluorosilicone (FK) |
| Spring Chamber Material | Cast Bronze ASTM B62 C83600 |
| Diaphragm Type | Composition |
| Diaphragm Material | Fluorosilicon (FK) |
| Trim no | M7 |
| Trim Material | Monel™ |
| Max pressure | 48,3 Bar |
| Max Differential Pressure [Bar] | 41.3 |
| Max Temperature [°C] | +107 |
| Min Temperature [°C] | -51 |
| Leakage Class | ANSI /FCI 70-2 Class IV |
| Kvs [m3/h] | 25.9 |
| Cv [gpm] | 30.0 |
| Face to Face [mm] | 292 |
| Operation Method | Pressure Loader |
| O2 Cleaned | Yes |
| Application | For air and similar gases |
| Certificate | On Request - ATEX II 2 G Ex h IIB T6...T1 Gb 1000ATEXR1 X |
| Length [mm] | 292 |
| Height [mm] | 348 |
| Width [mm] | 242 |
| Net Weight [kg] | 21.0 |
| Statistics code | 84811019 |
| Applications | Corrosive gases, Combustible gases, Inert gases |
MODEL SLR-2 REV A PRESSURE REDUCING REGULATOR WITH NON-RELIEVING LOADER;
DN40 (1 1/2") LINE SIZE;
BRONZE BODY, BRONZE LOADING CHAMBER;
M7 MONEL M TRIM, POLYURETHANE SEAT, FLUOROSILICONE DIAPHRAGM,
FLUOROSILICONE STATIC SEAL, STAINLESS STEEL/PTFE U-CUP DYNAMIC SEAL;
ASME 300 FLAT FACE FLANGED END CONNECTIONS;
LOWER SPRING 0.13 - 0.34 BARG RANGE;
INTERNAL SENSING;
LOADER CONFIGURATION: DN8 NPT, BRASS BODY AND SPRING CHAMBER, NON-RELIEVING,
STAINLESS STEEL TRIM, PTFE SEAT,
0.2 - 17.2 BARG (3 - 250 PSIG) SPRING RANGE;
BRASS FILTER, COPPER TUBING, BRASS FITTINGS;
OPT-55: CLEANED FOR OXYGEN SERVICE PER CASHCO SPECIFICATION S-1134
Designed as a gaseous oxygen (GOX) service regulator. Complete with Bronze Body and Monel Internal.
