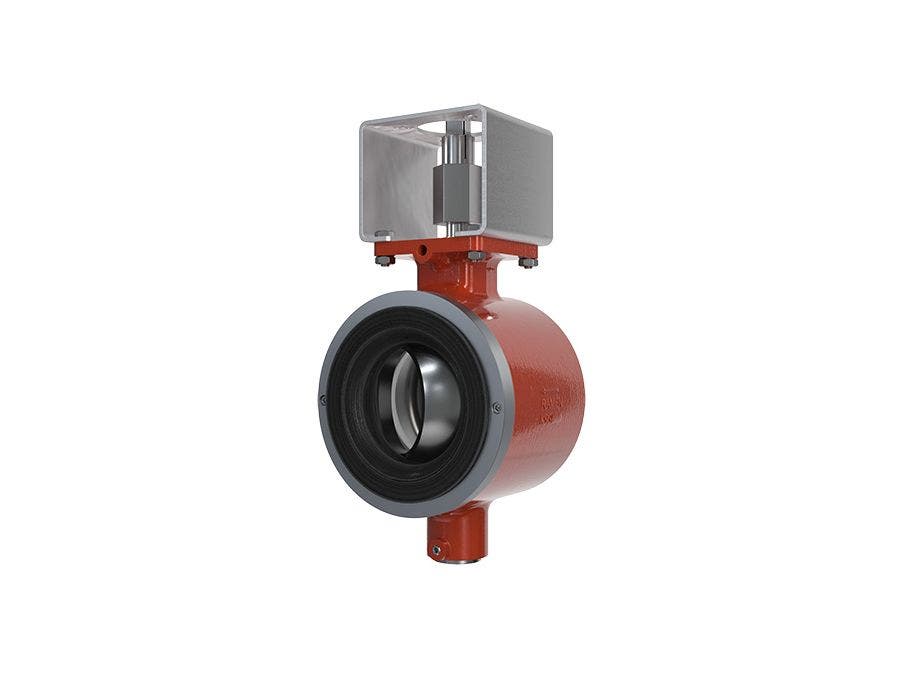

Ramén KSG rubber lined ball sector valve
The Ramén KSG Ball Sector Valve is a rubber-lined version of our Ramén KS Ball Sector Valve. The KSG’s durable rubber lining provides exceptional resistance to wear and tear, making it ideal for handling abrasive materials such as slurries, gravel, and iron ore. All wetted parts are lined with polyurethane (PUR) and natural rubber, making particles bounce off rather than wearing the metal material.
The Ramén KSG Ball Sector Valve's durability, precise control, and compact design make it a unique solution on the market, with minimal maintenance requirements and an extended service life.
| Product Name | Ramén KSG rubber lined ball sector valve |
|---|---|
| Size | 3"-8" (DN80-DN200) |
| Material | Elathane®(PUR) Lined EN GJS-400-15 Ductile Iron |
| Pressure Class | PN10 |
| Temperature range [°C] | Max+ 60 |
| Kv range | 200 to 1200 |
| Characteristic | Equal percentage |
| Seat material | Natural rubber (NR) + Butadiene Rubber (BR) |
| Seat leakage class | up to ANSI /FCI 70-2 Class VI |
| Connection | Wafer or flanged |
| Certificates | CE marked, PED Cat II Mod D1,ISO-15848-1(Fugitive emission),VDI 2440(TA-luft),ATEX according to directive 2014/34/EU |
| Kvs [m3/h] | 2.91 |
| Applications | Industrial wastewater, Powder, Slurry |
Choose variant to view detailed description
Cement mixture in silos and hoppers
Sand pumping
Crushers and seperators
Iron ore dressing plants
Industrial water treatment
Not all of these applications are suitable for all product variants. Consult with one of our technical specialists to ensure that the selected variant is suitable for your application.
