KSG-125-4G-PN16-XS
In stock
Article number
110-1-3004
List price:
EUR 5,605

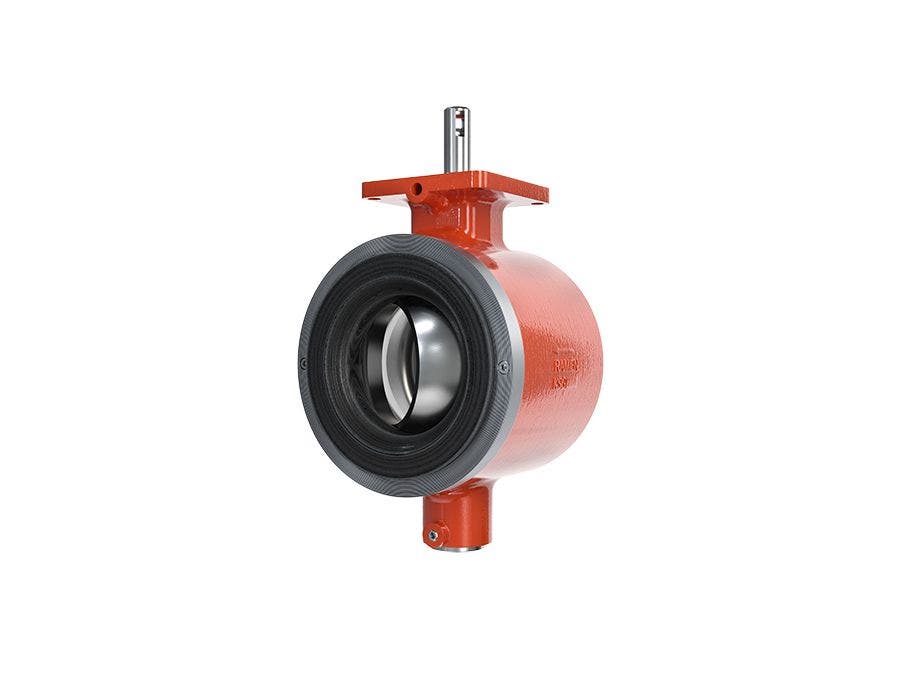

This replacement valve for a Ramén KSG Rubber Lined Ball Sector Valve is designed for seamless integration into your existing system. Delivered bare shaft without mounting kit or automation.
| Product Name | KSG-125-4G-PN16-XS |
|---|---|
| Country of Manufacture | Sweden |
| Size [DN] | DN125 |
| Model | KSG |
| Size [Inch] | 5" |
| Valve Type | Rubber Lined Ball Sector Valve |
| Seat | Soft Seat |
| Seat Material | NR/BR 40 Shore A, black |
| Sealing Material | Nitrile |
| Material Body | Ductile iron A395 Gr. 60-40-18 |
| Trim Material | NR/BR 40 Shore A, black |
| Seat Holding Ring | EN GJS-400-15 Ductile iron |
| Connection | Wafer (PN10) |
| Face to Face [mm] | 145 |
| Max pressure | 5 Bar |
| Pressure Class [Bar] | PN10 |
| Max Temperature [°C] | <= +60 |
| Leakage Class | ANSI /FCI 70-2 Class VI |
| Kvs [m3/h] | 530 |
| Cv [gpm] | 620 |
| Characteristic | Equal Percentage |
| Configuration | Bare shaft |
| ISO 5211 | F07-F10/17 |
| Torque [Nm] | 160-400, 400 Max |
| Application | Abrasive media in various industrial applications |
| Process media | Industrial wastewater, Powder, Slurry |
Ramén rubber lined Ball Sector Valve type KSG, DN125, PN16
With short drive shaft (XS)
Kvs/Cv = 530/620
Body and ball sector: Ductile iron EN GJS-400-15
Lining ball sector and seat: Natural rubber (NR)
Lining body: Polyuretan (PUR)
O-rings: FKM (pos 13/14) and NBR (pos 16)
Working pressure: Max 5 bar
Operating temperature: -10°C to +80°C
Face to face: 145 mm
Wafer type (for flange PN 10/16)
| Length [mm] | 275 |
|---|---|
| Height [mm] | 145 |
| Width [mm] | 190 |
| Net Weight [kg] | 11.0 |
| Statistics code | 84818059 |
