EUR 44,680
In stock
Article number

The Ramén KSC control valve series is a brand-new innovative solution that offers the highest performance for controlling and isolating gases and fluids. With a broad range of flow capacities and flangeless (wafer) design, it is the most compact solution on the market in any installation. The KSC comes in two shapes, electrical or pneumatic with highest rangeability and lowest hysteresis in any configuration. Soft or metal seated designs makes it possible to optimize life cycle cost for any application.

Do you have questions? Contact us >>
Add product to comparison list >>
More Information
Product Name KSC-300-1B-PN16-WM150/SR-SV/24VDC
Country of Manufacture Sweden
Model KSC Pneumatic ON/OFF
Valve size [DN] 300
Seat Metal Seat / Solid Stellite
Type of actuator Single Acting, Spring Return
Feedback Limit Switch
Gross Weight [kg] 0
Net Weight [kg] 226.0
Package size [mm] 0
Statistics code 84818059
Length [mm] 1415
Height [mm] 368
Width [mm] 460
Connection Wafer
Actuator Pneumatic WM8/DA
Positioner SE - SRD998
Input 4-20 mA
Output No
Supply min 6 bar
Application Fluid, Gas
Kvs [m3/h] 0.25
Cv [gpm] 0.3

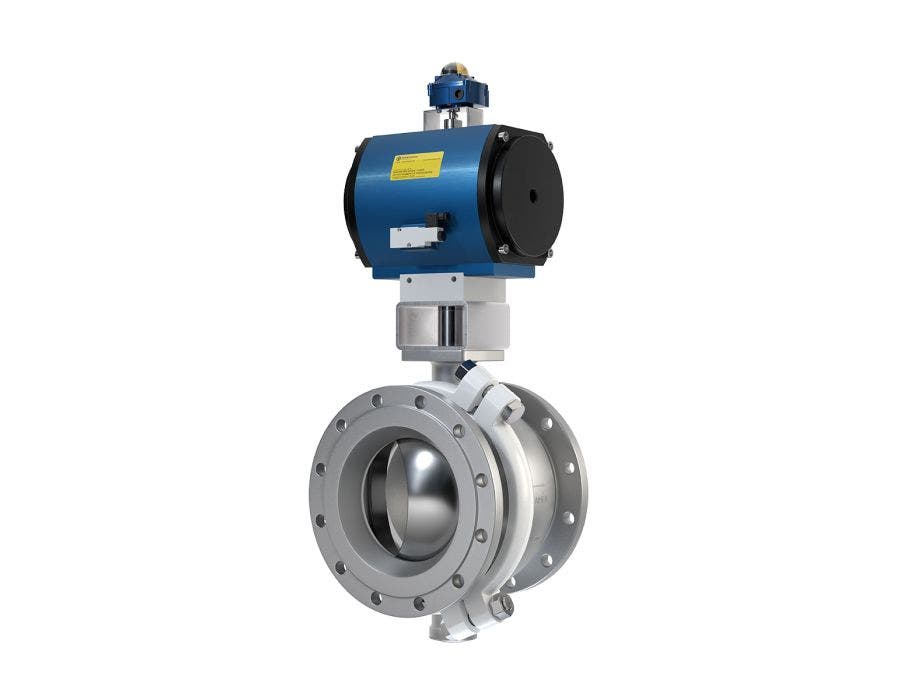

Ramén Ball Sector Valve type KS-1B, DN300, PN16

Kvs/Cv = 3580/4500

Body: 1.4409 / Ball sector: 1.4409+Cr

Seat ring: Stellite (pos 10)

O-rings: FKM (pos 13/14/15/16)

Flanged PN 16


Spring Return pneumatic actuator WireMatic type WM150, spring close


Switch box ITS100, mechanical 3-wire


Solenoid pilot valve, Namur interface, Anodized aluminium body, NBR sealing

3/2-ways, Operating pressure 1,5 - 8 bar, 1/4” inlet and outlet ports, 24VDC


No typical applications has been added for this product.
