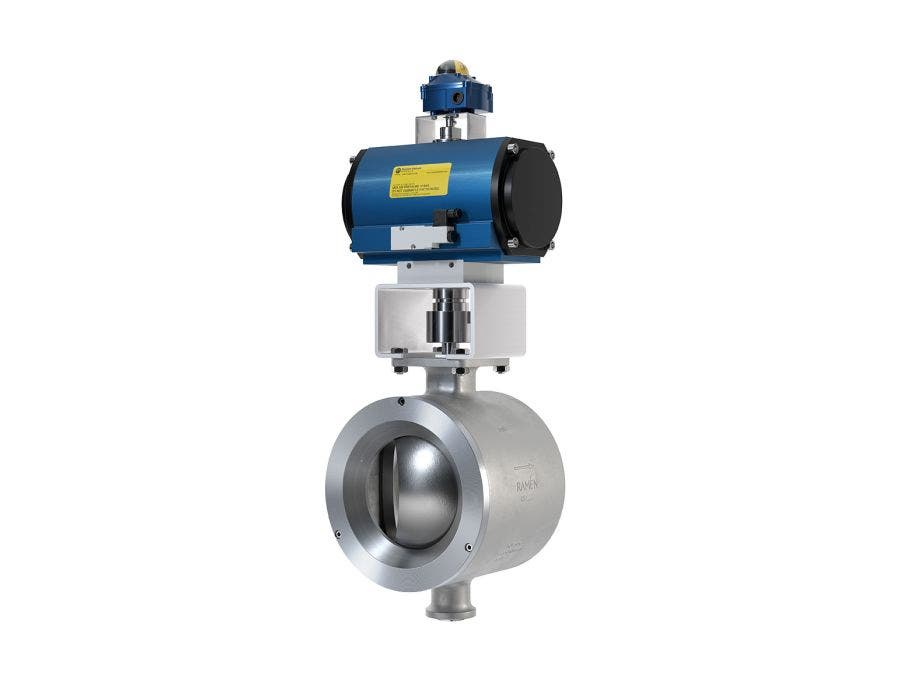

KSC-250-1B-PN16-WM70/SR-SV/24VDC
The Ramén KSC control valve series is a brand-new innovative solution that offers the highest performance for controlling and isolating gases and fluids. With a broad range of flow capacities and flangeless (wafer) design, it is the most compact solution on the market in any installation. The KSC comes in two shapes, electrical or pneumatic with highest rangeability and lowest hysteresis in any configuration. Soft or metal seated designs makes it possible to optimize life cycle cost for any application.
| Product Name | KSC-250-1B-PN16-WM70/SR-SV/24VDC |
|---|---|
| Country of Manufacture | Sweden |
| Model | KSC Pneumatic ON/OFF |
| Size [DN] | DN250 |
| Seat | Metal Seat |
| Type of actuator | Single Acting (SR) |
| Feedback | Limit Switch |
| Size [Inch] | 10" |
| Valve Type | Ball Sector Valve |
| Seat material | Solid Stellite |
| Sealing | FKM |
| Material body | 1.4409 |
| Trim Material | 1.4409 +Expanite® |
| Seat Holding Ring | 1.4409 |
| Trim no | 1B |
| Connection | Wafer |
| Face to Face [mm] | 270 |
| Max pressure | 16 Bar |
| Pressure Class [Bar] | PN16 |
| Max Temperature [°C] | +200 |
| Min Temperature [°C] | -40 |
| Leakage Class | ANSI /FCI 70-2 Class IV |
| Kvs [m3/h] | 2220 |
| Cv [gpm] | 2600 |
| Characteristic | Equal Percentage |
| Operation Method | Pneumatic Actuated |
| Actuator Model | WM70SR |
| Positioner | - |
| Accessories | Solenoid Valve 3/2-Way 24Vdc |
| Limit Switch | Yes |
| Input | 24 VDC |
| Output | Switch - max 250V AC 16A, 125V DC 0.6A |
| Supply | min 6 bar |
| O2 Cleaned | No |
| Application | Contaminated abrasive media |
| Certificate | CE marked, PED Cat II Mod D1,ISO-15848-1(Fugitive emission),VDI 2440(TA-luft),ATEX according to directive 2014/34/EU |
| Length [mm] | 1227 |
| Height [mm] | 269 |
| Width [mm] | 358 |
| Net Weight [kg] | 98.0 |
| Statistics code | 84818059 |
| Applications | Oil, Industrial wastewater, Steam, Food & beverage, Drinking water (potable water), Chemicals |
Ramén Ball Sector Valve type KS-1B, DN250, PN16
Kvs/Cv = 2220/2600
Body: 1.4409 / Ball sector: 1.4409+Cr
Seat ring: Stellite (pos 10)
O-rings: FKM (pos 13/14/15/16)
Wafer type (for flange PN 10/16)
------
Spring Return pneumatic actuator WireMatic type WM70, spring close
------
Switch box ITS100, mechanical 3-wire
------
Solenoid pilot valve, Namur interface, Anodized aluminium body, NBR sealing
3/2-ways, Operating pressure 1,5 - 8 bar, 1/4” inlet and outlet ports, 24VDC
