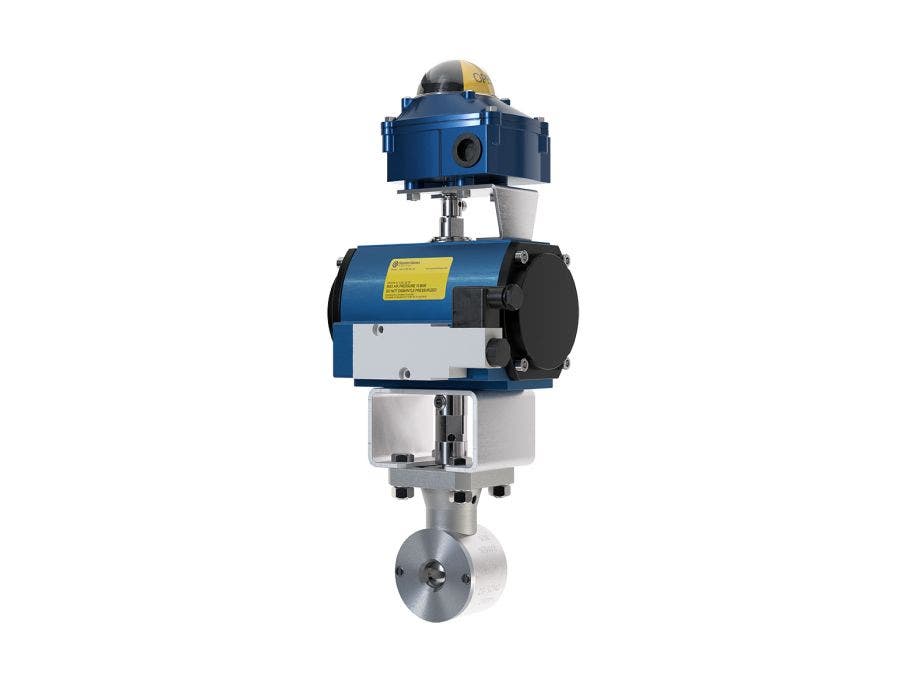

KSC-25/2,5-1B-PN40-WM8/SR-SV/24VDC

EUR 3,350
In stock
Article number
120-1-7054

The Ramén KSC control valve series is a brand-new innovative solution that offers the highest performance for controlling and isolating gases and fluids. With a broad range of flow capacities and flangeless (wafer) design, it is the most compact solution on the market in any installation. The KSC comes in two shapes, electrical or pneumatic with highest rangeability and lowest hysteresis in any configuration. Soft or metal seated designs makes it possible to optimize life cycle cost for any application.

Do you have questions? Contact us >>
Add product to comparison list >>
More Information
Product Name KSC-25/2,5-1B-PN40-WM8/SR-SV/24VDC
Country of Manufacture Sweden
Model KSC Pneumatic ON/OFF
Size [DN] DN25/2,5
Seat Metal Seat
Type of actuator Single Acting (SR)
Feedback Limit Switch
Size [Inch] 1"
Valve Type Ball Sector Valve
Seat material Solid Stellite
Sealing FKM
Material body 1.4409
Trim Material 1.4409 +Expanite®
Seat Holding Ring 1.4409
Trim no 1B
Connection Wafer
Face to Face [mm] 50
Max pressure 40 Bar
Pressure Class [Bar] PN40
Max Temperature [°C] +200
Min Temperature [°C] -40
Leakage Class ANSI /FCI 70-2 Class IV
Kvs [m3/h] 2.1
Cv [gpm] 2.5
Characteristic Equal Percentage
Operation Method Pneumatic Actuated
Actuator Model WM8SR
Positioner -
Accessories Solenoid Valve 3/2-Way 24Vdc
Limit Switch Yes
Input 24 VDC
Output Switch - max 250V AC 16A, 125V DC 0.6A
Supply min 6 bar
O2 Cleaned No
Application Contaminated abrasive media
Certificate CE marked, PED Cat II Mod D1,ISO-15848-1(Fugitive emission),VDI 2440(TA-luft),ATEX according to directive 2014/34/EU
Length [mm] 284
Height [mm] 127
Width [mm] 177
Net Weight [kg] 10.0
Statistics code 84818059
Applications Oil, Industrial wastewater, Steam, Food & beverage, Drinking water (potable water), Chemicals

Ramén Ball Sector Valve type KS-1B, DN25/2,5 PN40

Kvs/Cv = 2,1/2,5

Body: 1.4432 / Ball sector: 1.4435+Cr

Seat ring: Stellite (pos 10)

O-rings: FKM (pos 13/14/15/16)

Wafer type (for flange PN 10/40)

------

Spring Return pneumatic actuator WireMatic type WM8, spring close

------

Switch box ITS100, mechanical 3-wire

------

Solenoid pilot valve, Namur interface, Anodized aluminium body, NBR sealing

3/2-ways, Operating pressure 1,5 - 8 bar, 1/4” inlet and outlet ports, 24VDC
