KSC-25/1,3-1B-PN40-AUQ80/230VAC

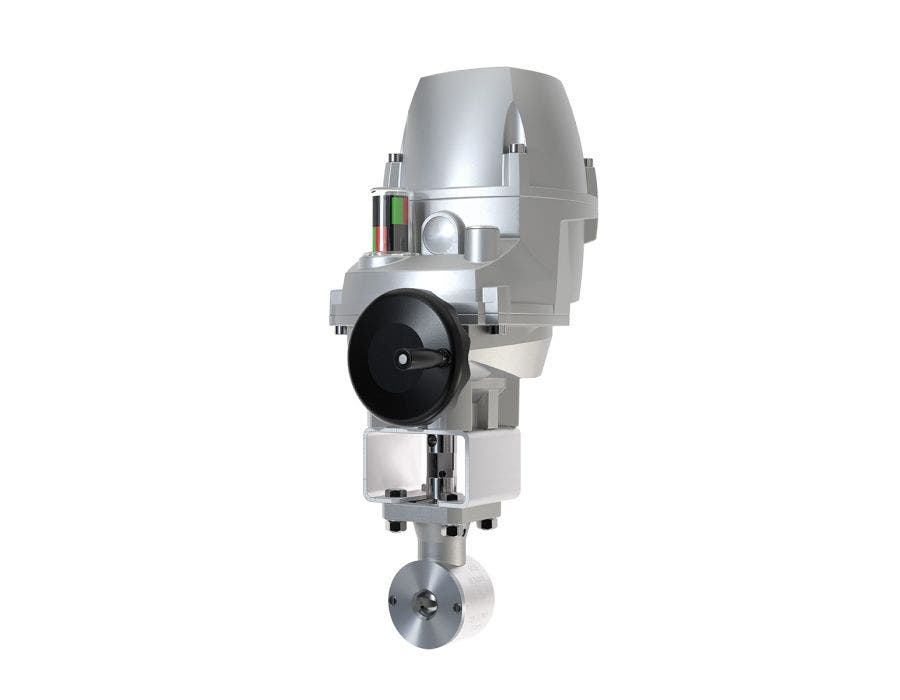

The Ramén KSC Ball Sector Valve is an innovative, all-in-one solution for efficient and precise control of gases and liquids. The KSC valve is an advanced version of the Ramén KS Ball Sector Valve, equipped with automation and carefully selected accessories, making it one of the most precise and compact valve solutions on the market. This version comes with an electric actuator, positioner, and filter regulator or solenoid valve, offering exceptional flexibility and performance. To optimize lifecycle costs, the valve can be provided with either a soft-seat or metal seat, depending on the type of media being controlled.
The Ramén KSC Ball Sector Valve is treated with the environmentally friendly SuperExpanite® surface treatment, making it exceptionally durable and ideal for abrasive media and harsh conditions, all while maintaining a low environmental impact. It is well suited for a wide variety of applications, ranging from controlling clean liquids and gases at moderate pressures and temperatures to more demanding conditions such as slurries, powders, high-velocity flows, large differential pressures, and potential cavitation.
| Product Name | KSC-25/1,3-1B-PN40-AUQ80/230VAC |
|---|---|
| Country of Manufacture | Sweden |
| Model | KSC Electric ON/OFF |
| Size [DN] | DN25/1,3 |
| Seat | Metal Seat |
| Type of actuator | Electric |
| Feedback | Limit Switch |
| Size [Inch] | 1" |
| Valve Type | Ball Sector Valve |
| Seat material | Solid Stellite |
| Sealing | FKM |
| Material body | 1.4432 |
| Trim Material | 1.4435 + Expanite® |
| Seat Holding Ring | 1.4432 |
| Trim no | 1B |
| Connection | Wafer |
| Face to Face [mm] | 50 |
| Max pressure | 40 Bar |
| Pressure Class [Bar] | PN40 |
| Max Temperature [°C] | +200 |
| Min Temperature [°C] | -40 |
| Leakage Class | ANSI /FCI 70-2 Class IV |
| Kvs [m3/h] | 1.1 |
| Cv [gpm] | 1.3 |
| Characteristic | Equal Percentage |
| Operation Method | Electric Actuated |
| Actuator Model | Auma Profox Q80 |
| Positioner | - |
| Limit Switch | Yes |
| Input | 24 VDC Open-close |
| Output | Switch - max 250V AC 16A, 125V DC 0.6A |
| Supply | 1-ph 100-240VAC, 50/60Hz |
| O2 Cleaned | No |
| Application | Contaminated abrasive media |
| Certificate | CE marked, PED Cat II Mod D1,ISO-15848-1(Fugitive emission),VDI 2440(TA-luft),ATEX according to directive 2014/34/EU |
| Length [mm] | 462 |
| Height [mm] | 315 |
| Width [mm] | 160 |
| Net Weight [kg] | 11.2 |
| Statistics code | 84818059 |
| Applications | Oil, Industrial wastewater, Steam, Food & beverage, Drinking water (potable water), Chemicals |
Ramén Ball Sector Valve type KS-1B, DN25/1,3 PN40
Kvs/Cv = 1,1/1,3
Body: 1.4432 / Ball sector: 1.4435+Cr
Seat ring: Stellite (pos 10)
O-rings: FKM (pos 13/14/15/16)
Wafer type (for flange PN 10/40)
------
Electric actuator Auma Profox Q80, function On/Off S2-15min
Local controls with push buttons, control interface: 24VDC open-close
Status signals via output contacts open-closed-fault, analog output 4-20mA
Motor 1-ph 100-240VAC, 50/60Hz, integral actuator control, insulation class F
Torque 32-80 Nm, operating time 8-80 sec
Hand wheel, mechanical position indicator, enclosure protection IP67
Wiring diagram: TPCP00A1A1A100000
