EUR 9,590
In stock
Article number

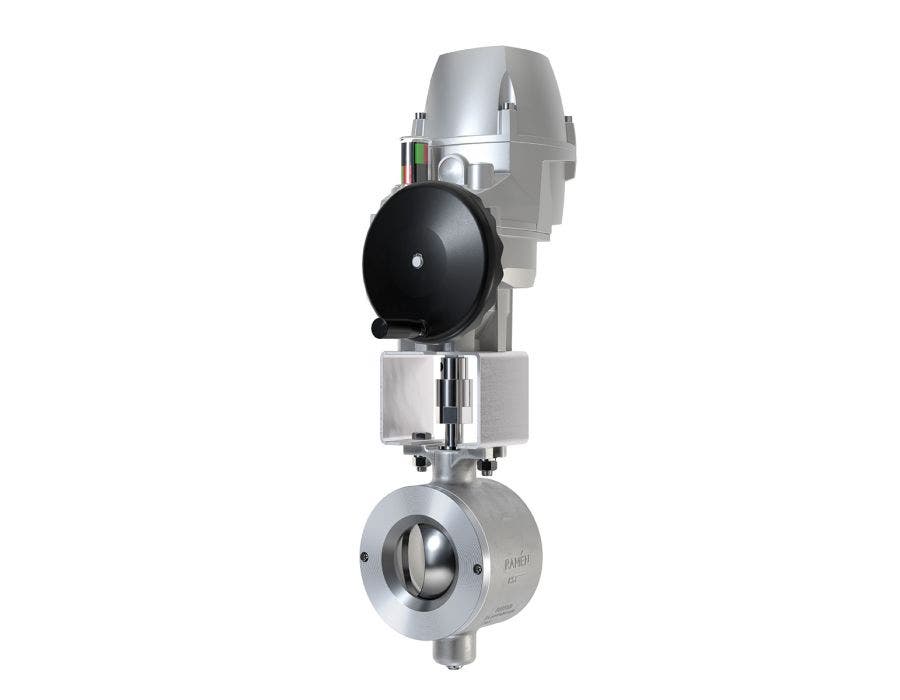

The Ramén KSC control valve series is a brand-new innovative solution that offers the highest performance for controlling and isolating gases and fluids. With a broad range of flow capacities and flangeless (wafer) design, it is the most compact solution on the market in any installation. The KSC comes in two shapes, electrical or pneumatic with highest rangeability and lowest hysteresis in any configuration. Soft or metal seated designs makes it possible to optimize life cycle cost for any application.

Do you have questions? Contact us >>
Add product to comparison list >>
More Information
Product Name KSC-100-1B-PN25-AUQ300/230VAC/FB
Product status [1077] 2
Country of Manufacture Sweden
Model KSC Electric Modulating
Valve size [DN] 100
Seat Metal Seat / Solid Stellite
Feedback 4-20 mA
Connection Wafer
Actuator AUMA Profox Q80
Positioner -
Input 24 VDC
Output -
Supply 230 VAC
Kvs [m3/h] 21.0
Cv [gpm] 25.0
Gross Weight [kg] 0
Net Weight [kg] 23.0
Package size [mm] 0
Statistics code 84818059
Length [mm] 662
Height [mm] 339
Width [mm] 160
Application Fluid, Gas

Ramén Ball Sector Valve type KS-1B, DN100, PN25

Kvs/Cv = 390/460

Body: 1.4409 / Ball sector: 1.4409+Cr

Seat ring: Stellite (pos 10)

O-rings: FKM (pos 13/14/15/16)

Wafer type (for flange PN 10/25)


Electric actuator Auma Profox Q300, function modulating S4-50%

Local controls with push buttons, positioner 4-20mA

Status signals via output contacts open-closed-fault, analog output 4-20mA

Motor 1-ph 100-240VAC, 50/60Hz, integral actuator control, insulation class F

Torque 120-300 Nm, max modulating torque 150 Nm, operating time 45-320 sec

Hand wheel, mechanical position indicator, enclosure protection IP67

Wiring diagram: TPCP00A1B1A100000


No typical applications has been added for this product.
