| Product Name | KS-50-1xP-PN40-XS |
|---|---|
| Country of Manufacture | Sweden |
| Model | KSC-1A |
| Size [DN] | DN450 |
| Size | 2" (DN50) |
| Material | Stainless steel EN 1.4409 |
| Pressure Class | Up to PN 40 |
| Characteristic | Equal percentage |
| Seat leakage class | up to ANSI /FCI 70-2 Class VI |
| Connection | Wafer |
| Certificates | CE marked, PED Cat II Mod D1,ISO-15848-1(Fugitive emission),VDI 2440(TA-luft),ATEX according to directive 2014/34/EU |
| Kvs [m3/h] | 2.91 |
| Length [mm] | 210 |
| Height [mm] | 75 |
| Width [mm] | 94 |
| Net Weight [kg] | 3.2 |
| Statistics code | 84818059 |
| Applications | Oil, Industrial wastewater |

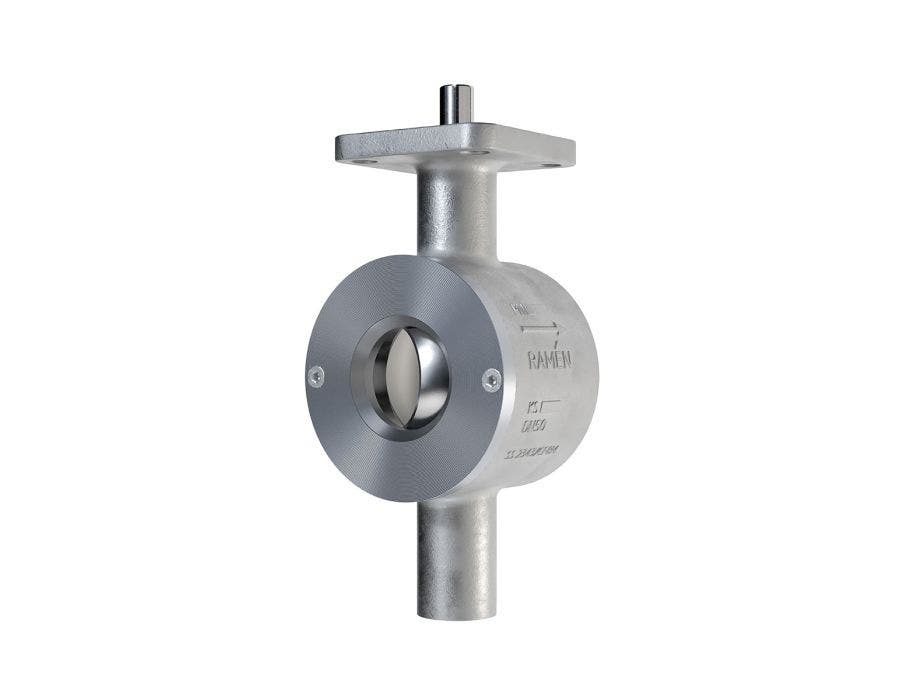

Ramén Ball Sector Valve type KS-1, DN50, PN40, short bare shaft
Kvs/Cv = 94/110
Body: 1.4409 / Ball sector: 1.4409
Seat ring: PTFE (Carbon/graphite reinforced) (pos 10)
O-rings: EPDM Peroxid (pos 13/15/16)
Wafer type (for flange PN 10/40)
No typical applications has been added for this product.
