KS-40/25-1-PN40-O2C-WM12/DA-PS2
EUR 5,980
In stock
Article number
120-1-1400
| Product Name | KS-40/25-1-PN40-O2C-WM12/DA-PS2 |
|---|---|
| Country of Manufacture | Sweden |
| Model | KSC Pneumatic Modulating |
| Size [DN] | DN40/25 |
| Seat | Soft Seat |
| Type of actuator | Double Acting (DA) |
| Feedback | Without feedback |
| Size [Inch] | 1 1/2" |
| Valve Type | Ball Sector Valve |
| Seat material | PTFE (Carbon/graphite reinforced) |
| Sealing | FKM |
| Material body | 1.4409 |
| Trim Material | 1.4409 |
| Seat Holding Ring | 1.4409 |
| Trim no | 1 |
| Connection | Wafer |
| Face to Face [mm] | 71 |
| Max pressure | 40 Bar |
| Pressure Class [Bar] | PN40 |
| Max Temperature [°C] | +200 |
| Min Temperature [°C] | -40 |
| Leakage Class | ANSI /FCI 70-2 Class VI |
| Kvs [m3/h] | 34.0 |
| Cv [gpm] | 40.0 |
| Characteristic | Equal Percentage |
| Operation Method | Pneumatic Actuated |
| Actuator Model | WM12DA |
| Positioner | Yes |
| Accessories | Filter Regulator w/Gauge |
| Limit Switch | No |
| Input | 4-20 mA |
| Output | - |
| Supply | 6 Bar |
| O2 Cleaned | Yes |
| Application | Clean and non-abrasive liquids/gases |
| Certificate | CE marked, PED Cat II Mod D1,ISO-15848-1(Fugitive emission),VDI 2440(TA-luft),ATEX according to directive 2014/34/EU |
| Net Weight [kg] | 10.3 |
| Statistics code | 84818059 |
| Applications | Drinking water (potable water), Corrosive gases, Combustible gases, Inert gases |
Ramén KulSektorventil typ KS-1, DN40/25, PN40
Kvs/Cv = 34/40
Hus: 1.4409 / Kulsektor: 1.4409
Sätesring: PTFE (pos 10)
O-ringar: Viton (pos 13/14/15/16)
För inspänning mellan flänsar (PN10/40)
Avfettad för syrgas
Pneumatisk dubbelverkande ställdon Wirematic (Typ 1)
Moment 122 Nm vid matning 6 bar/80 psi
Temperaturområde (standard) -30°C till +80°C
O-ringar av NBR

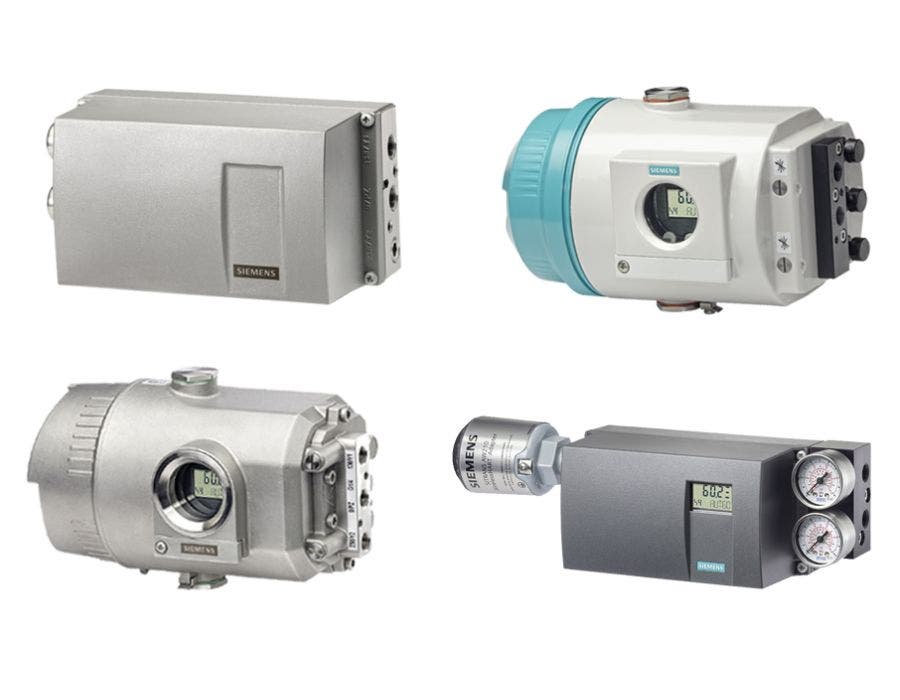

Digital lägesställare Siemens 6DR5020-0NG00-0AA0
matningsluft 5-7 bar, ansl 1/4" BSP, kabelingång M20,
plastkapslad, insignal 4-20 mA öppnar
