KS-25/0,3-1A-PN40-XS

EUR 1,520
In stock
Article number
110-1-1002
Do you have questions? Contact us >>
Add product to comparison list >>
More Information
Product Name KS-25/0,3-1A-PN40-XS
Country of Manufacture Sweden
Model KS-1A
Valve size [DN] 25/0,3
Gross Weight [kg] 2
Net Weight [kg] 2.0
Package size [mm] 0
Statistics code 84818059
Length [mm] 135
Height [mm] 75
Width [mm] 75
PN PN40
Material body 1.4432
Ballsector 1.4435+Cr
Sealing FKM
Seat PTFE (Carbon/graphite reinforced)
Face to Face [mm] 50
Connection Wafer type
Top works -
Application Slightly contaminated media
Kvs [m3/h] 0.25
Cv [gpm] 0.3

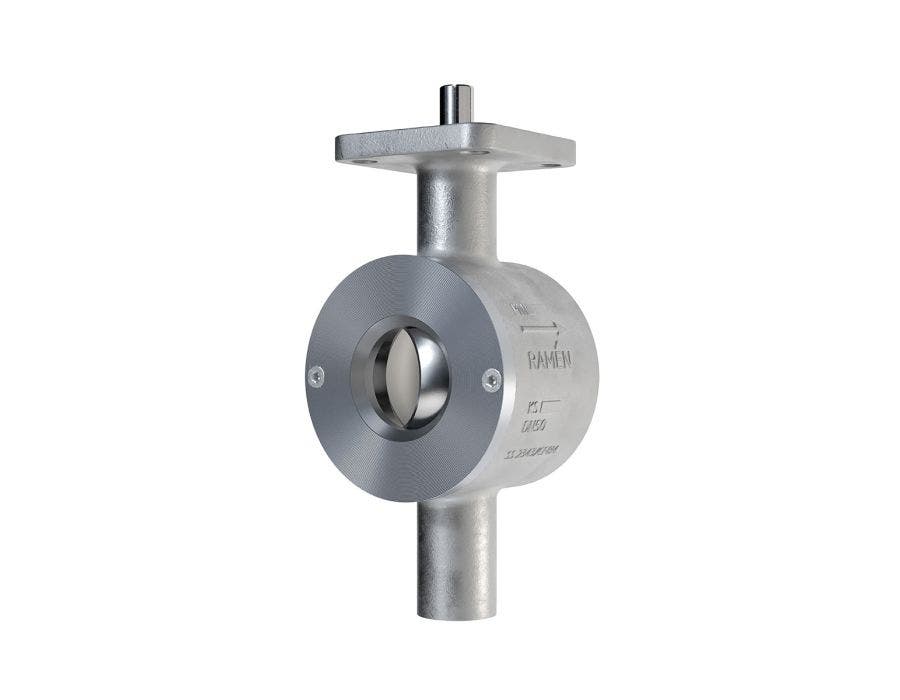

Ramén Ball Sector Valve type KS-1A, DN25/0,3 PN40, short bare shaft

Kvs/Cv = 0,25/0,3

Body: 1.4432 / Ball sector: 1.4435+Cr

Seat ring: PTFE (Carbon/graphite reinforced) (pos 10)

O-rings: FKM (pos 13/14/15/16)

Wafer type (for flange PN 10/40)

No typical applications has been added for this product.
