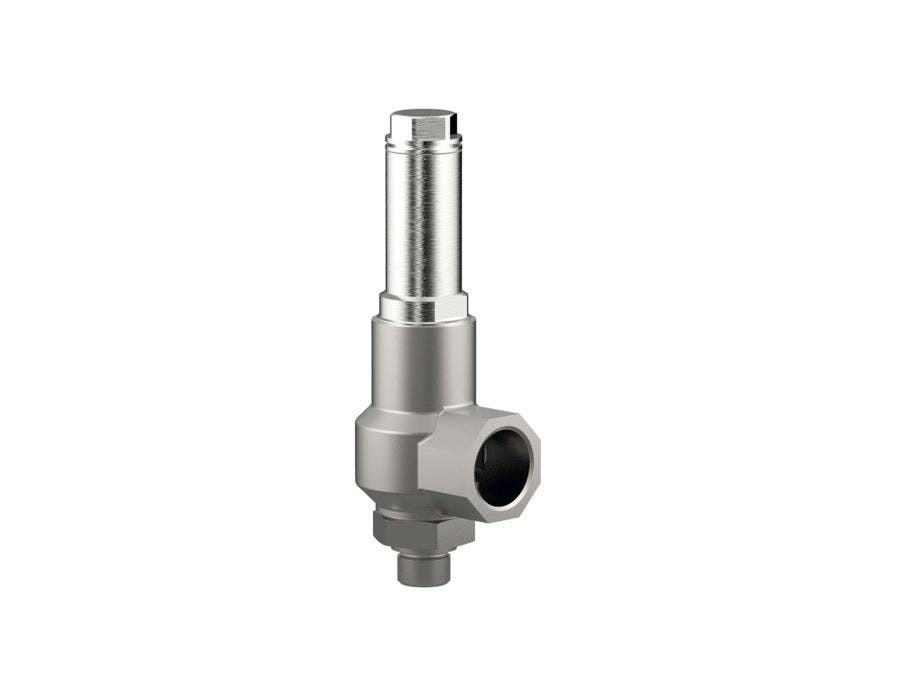

Herose safety valve 06801
Your price:
EUR 500
In stock
%1 pcs in stock
Article number
06801-1
HEROSE model 06801
Safety valve for protection of pressurized devices against overpressure and thermal expansion in pipe systems and other parts of the plant. For example. Gas cylinders, pipe systems and pressurized vessels. Made of stainless steel (316Ti) for working temperature: -270°C – +400°C. Approved for steam, gas and liquid according to TÜV-SV.1130. S/G/L. Bellow sealed with metal seat. Angular type. Washed for oxygen applications and suitable for cryogenic applications.
For more options and models contact Ramén Valves.
| Product Name | Herose safety valve 06801 |
|---|---|
| Design | Angle Type Safety Relief Valve |
| Size | 1/2"-1.0" (DN15-DN25) |
| Material | 1.4571 Stainless steel |
| Max pressure | 25 Bar |
| Temperature range [°C] | -270 to +255 |
| Seat material | 1.4541 |
| Pressure range [Bar] | 3.0 - 25.0 |
| Connection | Male Inlet: Type G (BSPP) or, Type R (BSPT) or, NPT, with Female outlet: Type G (BSPP) or NPT |
| Certificates | TÜV-SV.1105. S/G/L |
| Set pressure range [Bar] | 0,14-1,7 bar |
| Applications | Oil, Steam, Corrosive gases, Combustible gases, Inert gases, Chemicals |
