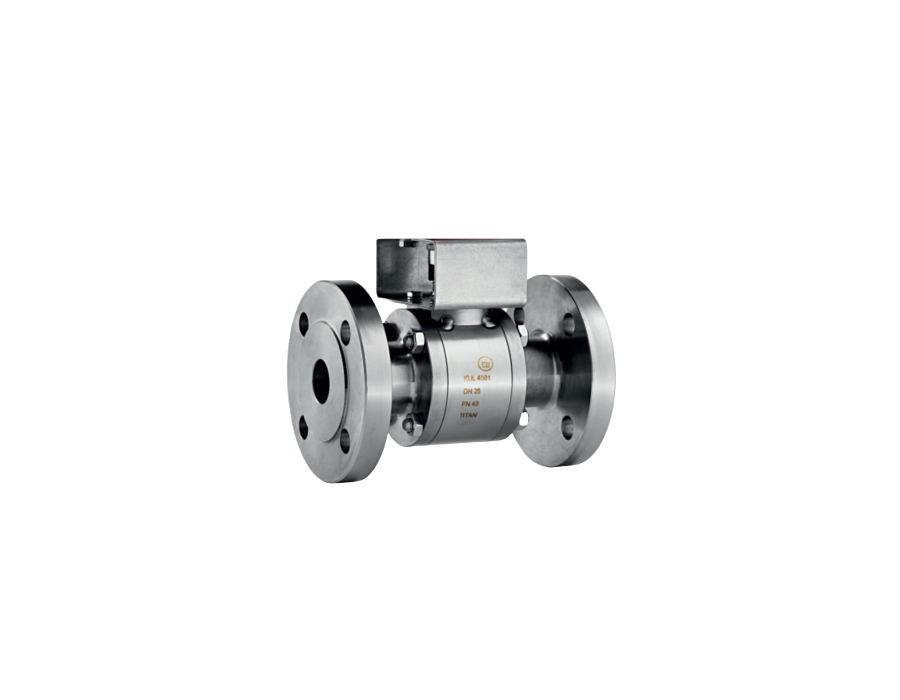

EB kulventil KUL5501, DN25-RB-PN40, DIN, TITAN
EUR 3,350
In stock
Article number
EB5501-1348-025RB
Reliable and durable three-piece ball valves (2-way) in high alloy materials for tight shut-off in liquid and gas applications. The
floating ball is soft seated with special design avoiding hidden cavities between ball and body for a long-life cycle, even in applications containing particles and fibers. The valve can be manually operated with hand lever and has mounting flange
according to ISO-5211 for actuator.
| Product Name | EB kulventil KUL5501, DN25-RB-PN40, DIN, TITAN |
|---|---|
| Country of Manufacture | Sweden |
| Size [DN] | DN25 |
| Connection | Wafer |
| Size | 1/2’’ – 6’’ (DN15-DN150) |
| Material | Titanium ASTM gr. 2 and gr. 5 |
| Max pressure | Up to 100 Bar |
| Connection | Flanged, threaded BSP/NPT (male/female), butt weld/socket weld, wafer |
| Model | 5501 |
| Valve Type | 3-piece Ball Valve |
| Size [Inch] | 1" |
| Seat | Soft Seat |
| Seat material | PTFE+C |
| Sealing | Viton |
| Material body | Titanium Gr. 2 |
| Trim Material | Titanium |
| Face to Face [mm] | 160 |
| Max pressure | 40 Bar |
| Max Differential Pressure [Bar] | 40 |
| Pressure Class [Bar] | PN40 |
| Max Temperature [°C] | +170 |
| Min Temperature [°C] | -40 |
| Leakage Class | Rate A acc. to EN12266-1 |
| Bore | Reduced |
| Hand lever | Yes |
| O2 Cleaned | No |
| Certificate | CE-marked acc. to PED 2014/68/EU CAT I |
| Net Weight [kg] | 1.0 |
| Statistics code | 84818081 |
| Applications | Oil, Industrial wastewater, Corrosive gases, Chemicals |
Engelsberg ball valve model 5501, DN25 / PN40
Reduced bore, mtrl Titanium, Wafer type DIN,
Seat of carbonfilled PTFE, sealings of Viton
Handlever
