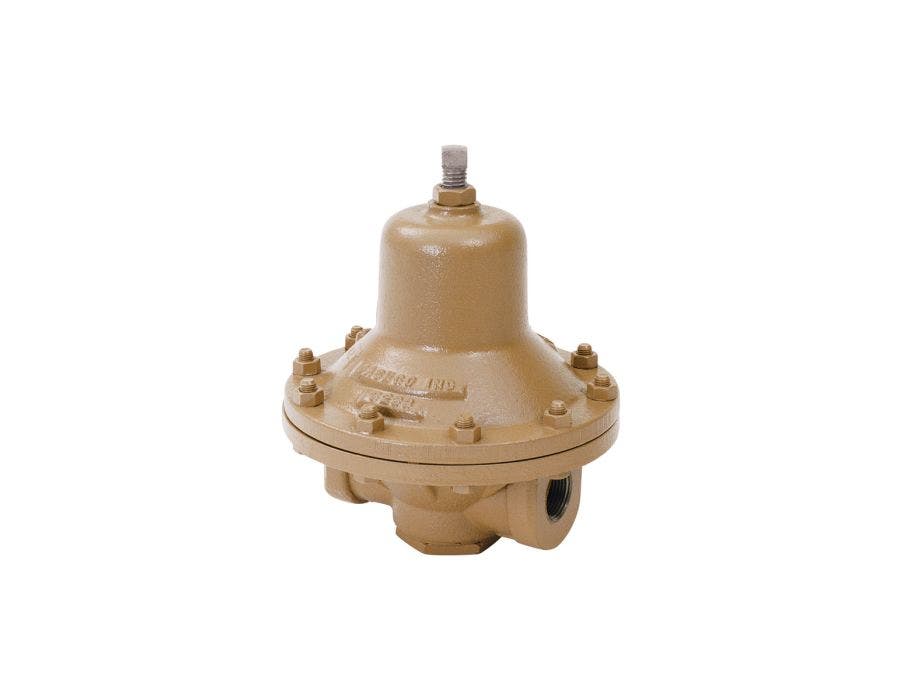

D-3/4"-4-DI/DI/SB/2-15psi
The Model D is primary a general service, self-contained, pressure reducing regulator. One of the most versatile regulators on the market, this Model D is excellent for atmospheric industrial gases – GN2, Ar, He, H2, CO2 – as well as natural gas.
Also pressure reducing applications where the temperature is greater -29 Deg C. Can be used as a utilities air regulator. Also for use in corrosive and non-corrosive chemical gas services are possible depeding on material compatibility.
This unit handles inlet pressures up to 51 Barg and outlet pressure is adjustable from 2-15 psig (0.14-1.0 Barg).
| Product Name | D-3/4"-4-DI/DI/SB/2-15psi |
|---|---|
| Country of Manufacture | United States |
| Service | Gas |
| Size [DN] | DN20 |
| Set pressure range [Bar] | 0.14 - 1.0 bar |
| Material body | Cast Ductile Iron ASTM A395 60-40-18 |
| Spring Chamber Material | Cast Ductile Iron ASTM A395-60-40-18 |
| Temperature range [°C] | -29 to +93 |
| Model | D |
| Valve Type | Pressure Reducing Regulator |
| Size [Inch] | 3/4" |
| Seat | Soft Seat |
| Seat material | Buna-N (NBR) |
| Sealing | PTFE |
| Diaphragm Type | Composition |
| Diaphragm Material | Buna-N (NBR) |
| Trim no | SB |
| Trim Material | 316 Stainless Steel |
| Connection | NPT |
| Max pressure | 51 Bar |
| Max Temperature [°C] | +93 |
| Min Temperature [°C] | -29 |
| Max Differential Pressure [Bar] | 13.8 |
| Leakage Class | ANSI /FCI 70-2 Class VI |
| Kvs [m3/h] | 3.2 |
| Cv [gpm] | 3.7 |
| Face to Face [mm] | 121 |
| Operation Method | Spring Operated |
| O2 Cleaned | No |
| Application | For gases, vapours and liquids |
| Certificate | On Request - ATEX II 2 G Ex h IIB T6...T1 Gb 1000ATEXR1 X |
| Length [mm] | 0 |
| Height [mm] | 0 |
| Width [mm] | 0 |
| Net Weight [kg] | 6.0 |
| Statistics code | 84811019 |
| Applications | Oil, Industrial wastewater, Corrosive gases, Combustible gases, Inert gases, Chemicals |
MODEL D REV D
PRESSURE REDUCING REGULATOR FOR GENERAL SERVICE;
DN20 (3/4") LINE SIZE;
DUCTILE IRON BODY AND SPRING CHAMBER;
SB TRIM: 416 STAINLESS STEEL WITH BUNA-N (NBR) SEAT AND DIAPHRAGM;
NPT THREADED END CONNECTIONS;
0.14-1.0 BAR (2-15 Psig) RANGE SPRING;
OPT-4: PISTON STABILIZER FOR GASEOUS SERVICE;
POLYETHYLENE VENTED SPRING CHAMBER PLUG
- Excellent for atmospheric industrial gases:
- Nitrogen (GN2), oxygen (GOX), Argon (Ar), helium (He), Hydrogen (H2), Carbon Dioxide(CO2), also for use with Natural gas, Biogas, Propane and LPG systems.
- Corrosive and non-corrosive chemical gas services are possible with broad materials range.
- Utilities main air pressure reducing regulator.
- Industrial Gasses Customer Supply Regulator.
- HVAC Expansion Valve
Not all of these applications are suitable for all product variants. Consult with one of our technical specialists to ensure that the selected variant is suitable for your application.
