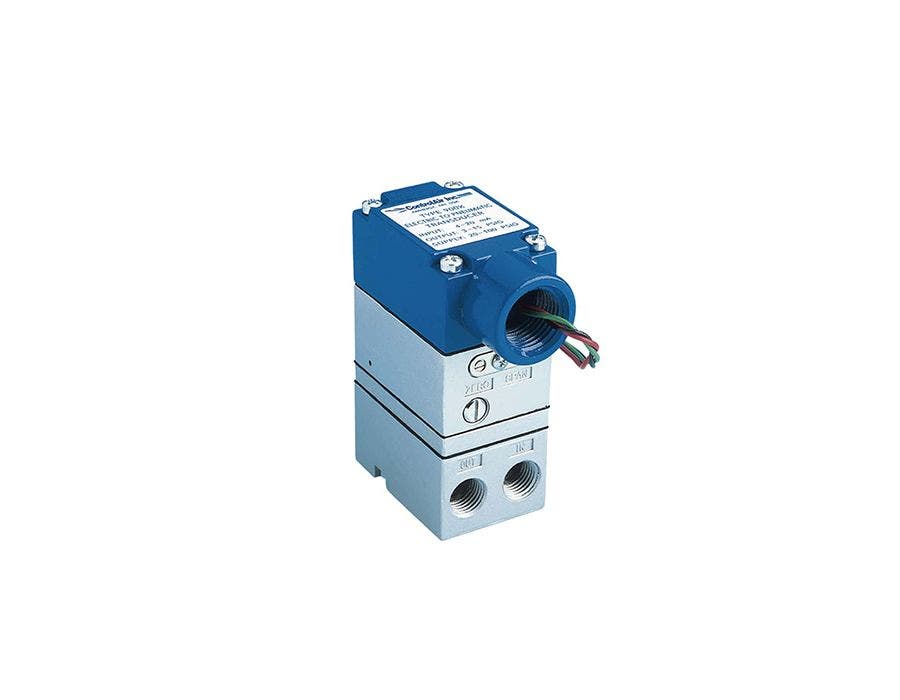

Control Air I/P converter 900X
Your price:
EUR 1,570
In stock
%1 pcs in stock
Article number
Control Air I/P omvandlare 900X
The Type-900X I/P, E/P transducer converts an electrical signal (current or voltage) to a proportional pneumatic output. Utilizing closed-loop pressure feedback circuitry, it provides precise, stable pressure outputs to final control elements. Immunity to vibration effects or mounting position, high tolerance to impure air, and low air consumption make this unit ideal for demanding applications. The compact housing, accessible ports and easy adjustments make it perfect for constrained spaces. An integral volume booster provides high flow capacity, increasing control speed in critical applications.
| Product Name | Control Air I/P converter 900X |
|---|---|
| Design | Miniture I/P Transducer with closed Loop |
| Input range | 4-20 mA 0-5 Vdc, 0-10 Vdc, 1-5 Vdc, 1-9 Vdc |
| Output Range | from 0.0 to 6.9 bar |
| Temperature range [°C] | -40 to +70 |
| Connection | Female NPT |
| Certificates | Ex II 1 G Ex ia IIB T4 Tamb = -40° C to +70° C |
| Size [DN] | DN450 |
| Applications | Oil |
Choose type to view detailed description
No typical applications has been added for this product.
