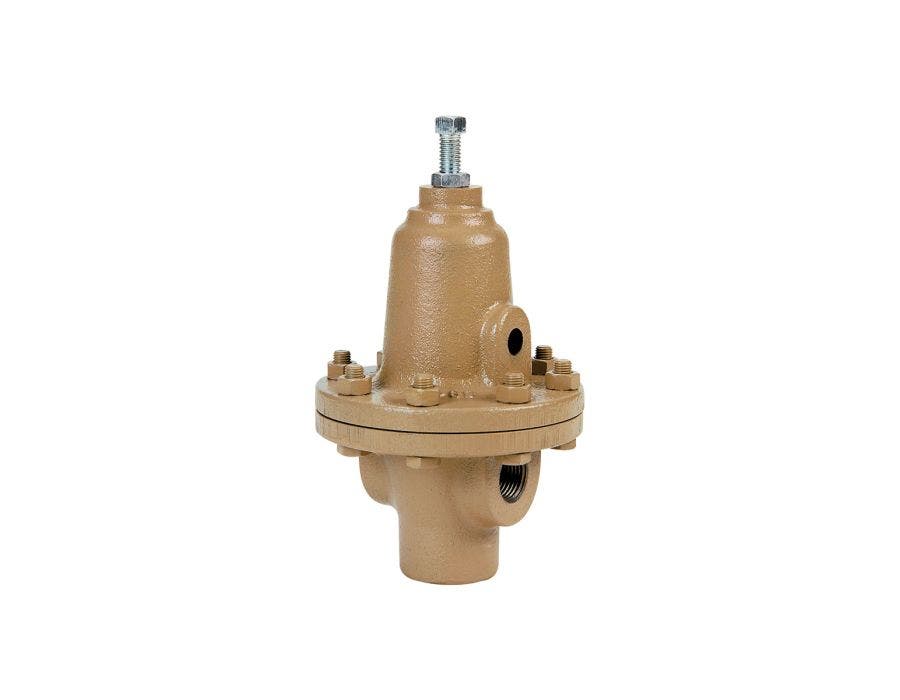

BQ-1/2"-5-BRZ/BRZ/B5/140-210psi, cryo option -5
The Model BQ is is primary a general service, self-contained pressure relief / pressure sustaining regulator suitable as a back pressure regulator or bypass valve for controlling inlet pressures between 140-210 Psig (9,65 - 14.48 Barg). For 1/2" (DN15) process piping and 1/2” (DN15) outlet connection.
With a large orifice and diaphragm provide sensitivity with high capacity. The composition seat allows for tight shut-off.
This Model BQ is excellent for both Cryogenic liquids and industrial gases – LOX, GOX, LIN, GN2, Ar, He, H2, CO2, CNG, LNG. Include Cleaned for Oxygen service, cryogenic construction.
Atex and PED Certificates upon request.
| Model | BQ |
|---|---|
| Product Name | BQ-1/2"-5-BRZ/BRZ/B5/140-210psi, cryo option -5 |
| Country of Manufacture | United States |
| Description | 1/2"NPT-5-BRZ/BRZ/B5, cryo option -5 |
| Service | Gas, Liquid or Cryogenic |
| Size [DN] | 1/2" (DN15) |
| Spring range | 9.65-14.48 Bar |
| Temperature range [°C] | -198 to +66 |
| Material body | Cast Bronze ASTM B62 C83600 |
| Spring Chamber Material | Cast Bronze ASTM B62 C83600 |
| Seat | Soft Seat |
| Connection | NPTF |
| Material | Cast bronze |
| Size | 1/8"-1/4" (DN6-DN8) |
| Connection | Female NPT |
| Operation Method | Spring Operated |
| Trim no | B5 |
| Diaphragm Type | Metal |
| Diaphragm Material | Phosphor Bronze |
| Seat material | PTFE |
| Max pressure | 27.6 Bar |
| Cv [gpm] | 1.81 |
| Kvs [m3/h] | 1.56 |
| Leakage Class | ANSI /FCI 70-2 Class VI |
| Gross Weight [kg] | 0 |
| Net Weight [kg] | 4.0 |
| Package size [mm] | 0 |
| Statistics code | 84811019 |
| Length [mm] | 114 |
| Height [mm] | 200 |
| Width [mm] | 114 |
| O2 Cleaned | Yes |
MODEL BQ REV A
BACK PRESSURE REGULATOR, PTFE GASKETS;
DN15 INLETS,DN15 OUTLET;
BRONZE BODY WITH BRONZE SPRING CHAMBER,
OPT-5: CRYOGENIC CONSTRUCTION;
B5 TRIM: BRASS WITH PTFE SEAT, PHOSPHOR BRONZE DIAPHRAGM;
NPT END CONNECTIONS;
9.65-14.48 BARG (140-210 PSIG) STAINLESS STEEL RANGE SPRING
- Excellent for Cryogenic Liquids, atmospheric and cryogenic industrial gas systems:
- Nitrogen (LIN, GN2), Oxygen (LOX, GOX), Argon (Ar), helium (He), Hydrogen (H2), Carbon Dioxide (CO2), also for use with LNG and CNG, Biogas, Propane and LPG systems.
- Corrosive and non-corrosive chemical gas services are possible with broad materials range.
- Economizer Regulator
Not all of these applications are suitable for all product variants. Consult with one of our technical specialists to ensure that the selected variant is suitable for your application.
