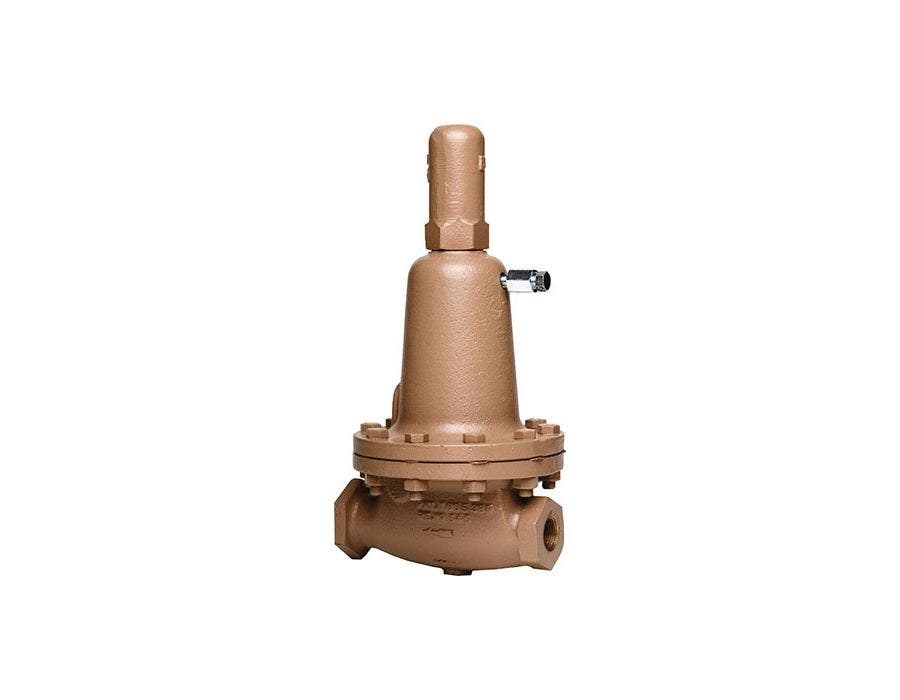

1000HP-1"NPT-45-55-BRZ/BRZ/B5/100-300psi, gas jet, O2- clean
Models 1000HP-1+6 or 1000HP-1+8 are differential reducing regulators used to maintain a relatively constant pressure differential between the fluid loading pressure – P Load, and the valve’s outlet pressure – P2, with P2 pressure higher than P Load pressure. Model 1000HP-1+6 is a single-diaphragm differential construction.
Model 1000HP-1+8 is a double-diaphragm differential construction. A double-diaphragm design prevents the fluid passing through the body from mixing into the loading fluid pressurizing the spring chamber in the event of a diaphragm failure. The design takes advantage of all the features of the basic 1000HP reducing regulator; see Technical Bulletin 1000HP-BASIC-TB. The availability of optional construction and body and trim materials is limited to those indicated in this Technical Bulletin.
| Product Name | 1000HP-1"NPT-45-55-BRZ/BRZ/B5/100-300psi, gas jet, O2- clean |
|---|---|
| Country of Manufacture | United States |
| Size [DN] | 1" (DN25) |
| Spring range | 100-300 psi |
| Gross Weight [kg] | 0 |
| Net Weight [kg] | 17.0 |
| Package size [mm] | 0 |
| Statistics code | 84811019 |
| Length [mm] | 202 |
| Height [mm] | 352 |
| Width [mm] | 187 |
MODEL 1000HP REV A
PRESSURE REDUCING REGULATOR WITH TFE/SILICA GASKETS (OPTION-45);
DN25 LINE SIZE, GASEOUS JET;
BRONZE BODY WITH BRONZE SPRING CHAMBER;
B5 TRIM: BRASS CYLINDER AND PLUG WITH PTFE SEAT,
PHOSPHOR BRONZE DIAPHRAGM;
NPT END CONNECTIONS;
6.90-20.69 BARG (100-300 PSIG) RANGE SPRING;
OPT-55: CLEANED FOR OXYGEN SERVICE PER CASHCO SPECIFICATION S-1134
